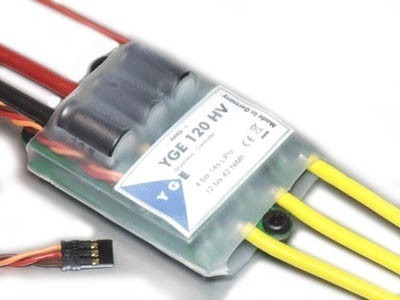

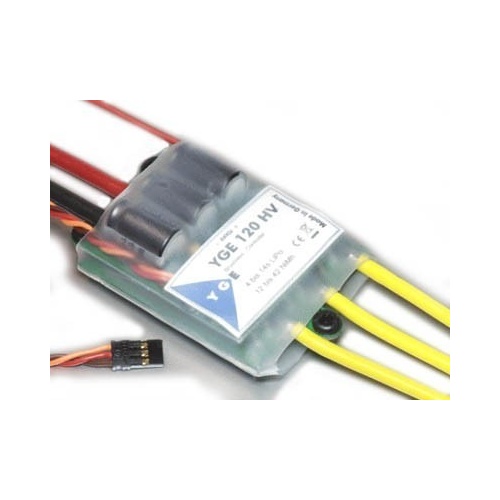

YGE ESC 120HV V4 (Opto) 4s-14s LiPo



YGE 120A HV Speed Controller Specifications:



- Max duration at 120A good cooling. 5 sec 150A.
- 4 to 14s LiPo, at low voltage.
- 5 to 15s LiFePO4, with under-voltage.
- 12-42 NiMh cells, with under-voltage.
- Undervoltage detection can be switched off.
- Optocouplers.
- Speed regulation (governor mode).
- Soft start can be individually adjusted.
- Active free-running, thus part load indefinitely.
- Automatic timing, or adjustable in 6 steps.
- Infinitely adjustable F3A brake
- Normal EMK brake adjustable in 3 steps.
- Clock frequency: 8 to 16 kHz
- Speed limit: 240,000 RPM (2-pole)
- Over temperature / over-load warning
- Integrated anti-lightning
- Dimensions: 66 x 52 x 25 mm
- Weight: 83g without - and 119g with cable 6 / 4 mm ²
- Programming with the ProgCard II



YGE Specials :

- The new version (V4) has an integrated anti-spark relay. The setup can now be read in spite of the optocoupler ProgCard II

- Vbar Gov Compatible

- Built in Heatsink



(400001141)

SKU 400001141
Brand YGE
