UNIVERSAL MOTOR MOUNT AND PINION SUPPORT FOR ALIGN TREX 600 PRO ELECTRIC SERIES ELICOPTERS

Note: the Universal Motor Mount provides the pilot the ability to run almost-all motor and gearing combinations available
for the TREX 600E PRO, with the ability to adjust for 12T through 18T MOD 1.0 pinion sizes when meshed with the standard
size, 115T MOD1.0 main drive gears. With a unique Universal Motor Mount hole pattern, the design can accommodate all
M4 x 30mm, M4 x 25mm, and M3 x 25mm motors on the market with a solid, four-bolt hole pattern installation. Included in
the design is the adjustable Universal Pinion Support, which has an oversized, 6 x 17 x 6mm radial bearing for incredible
strength, longevity, and durability for the high-power system of the 90-class electrics.

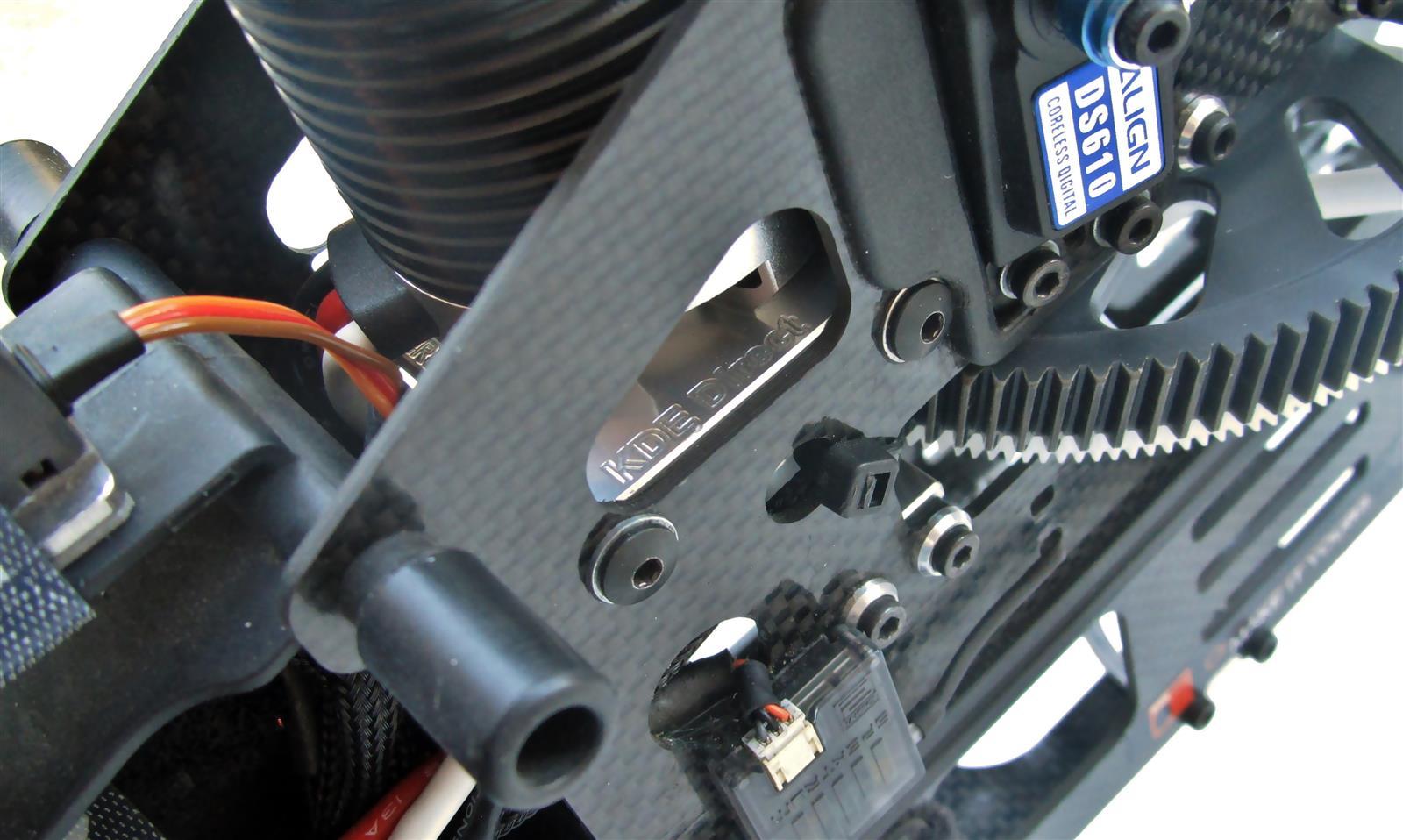

Important: for proper operation of the Universal Motor Mount
assembly (alignment and strength of mounting hold), the length of
the side-rail screws is critical. A maximum allowable length of
9.0mm (from the underside of the socket head cap screw to the
end of the threads) is required for proper installation.

Appropriate 8.0mm length screws are provided for the installation.

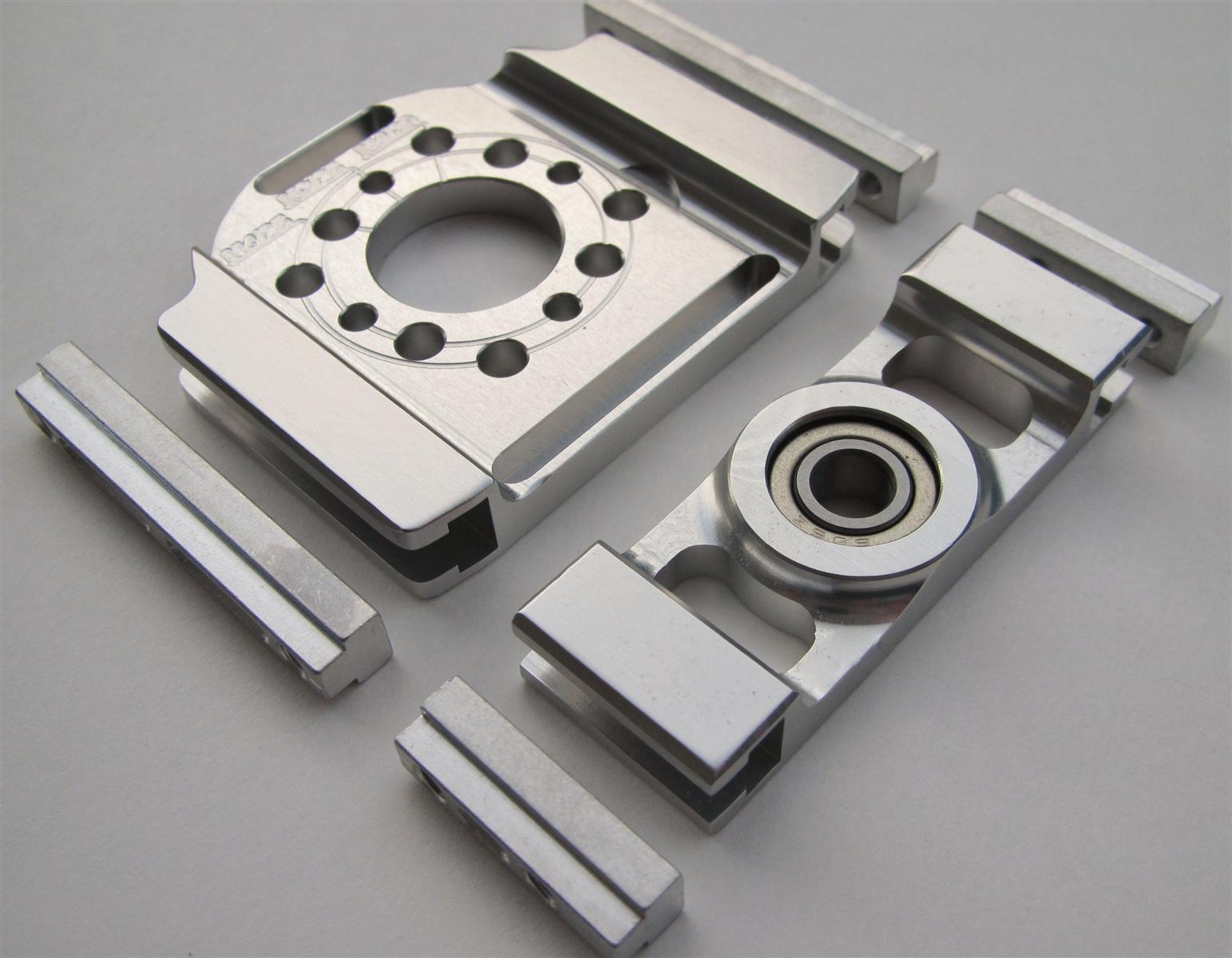

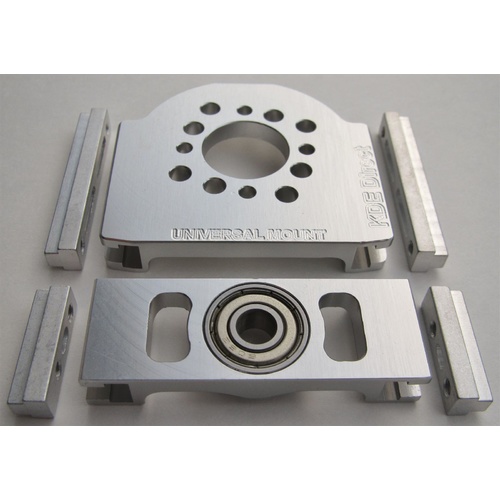

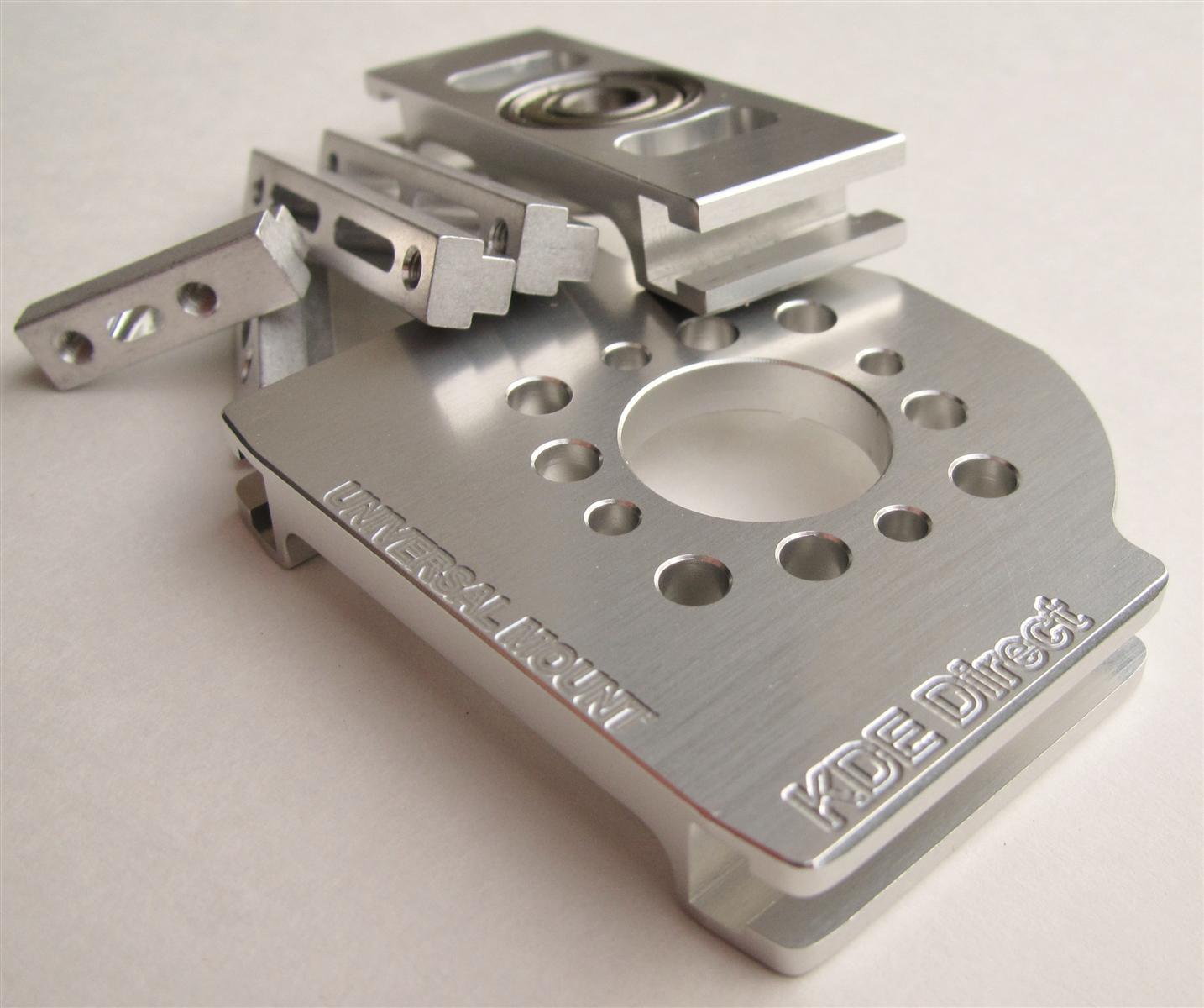

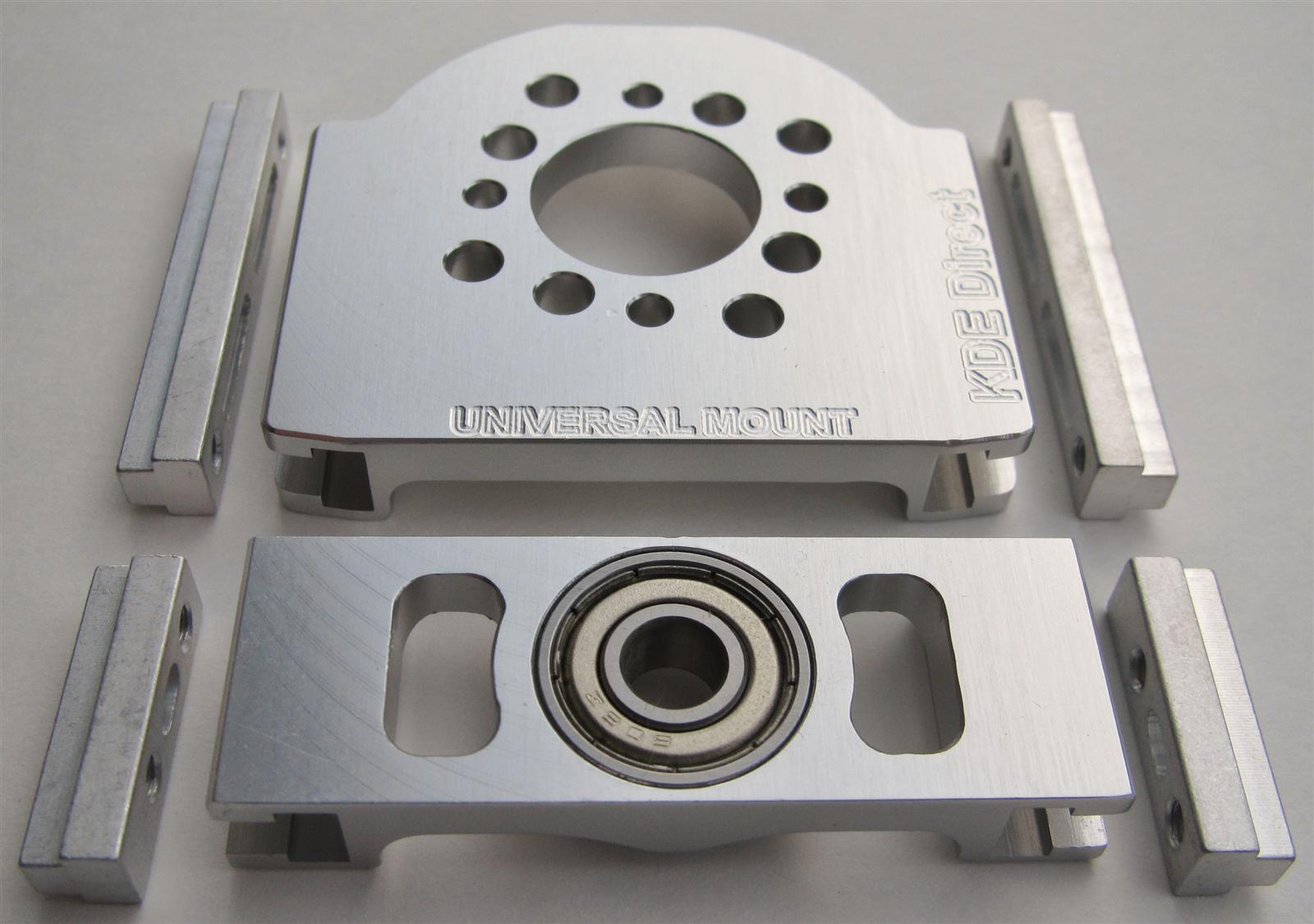

Contents:

- One (1) TREX 600 PRO Series Aluminum Universal Motor Base Plate
- Two (2) TREX 600 PRO Series Aluminum Universal Motor Base Adjustment Rails
- One (1) TREX 600 PRO Series Aluminum Universal Pinion Support Plate
- Two (2) TREX 600 PRO Series Aluminum Universal Pinion Support Adjustment Rails
- One (1) Radial Ball Bearing 6 x 17 x 6 mm
- Four (4) M4 x 0.7 x 10 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Four (4) M4 Flat Washers (Zinc-Plated Alloy Steel)
- Eight (8) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)

Finish:
Clear anodize, mirror-polish CNC gloss

Weight:
39 g (design is FEA optimized for maximum strength and minimum weight)

Installation Diagram: http://kdedirect.com/files/AT600P-UMM_Installation_Diagram4.pdf
