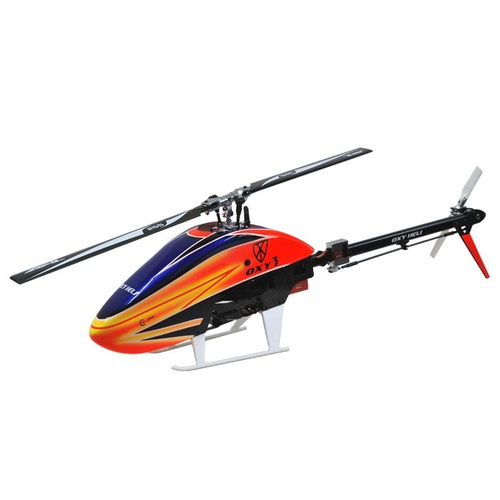

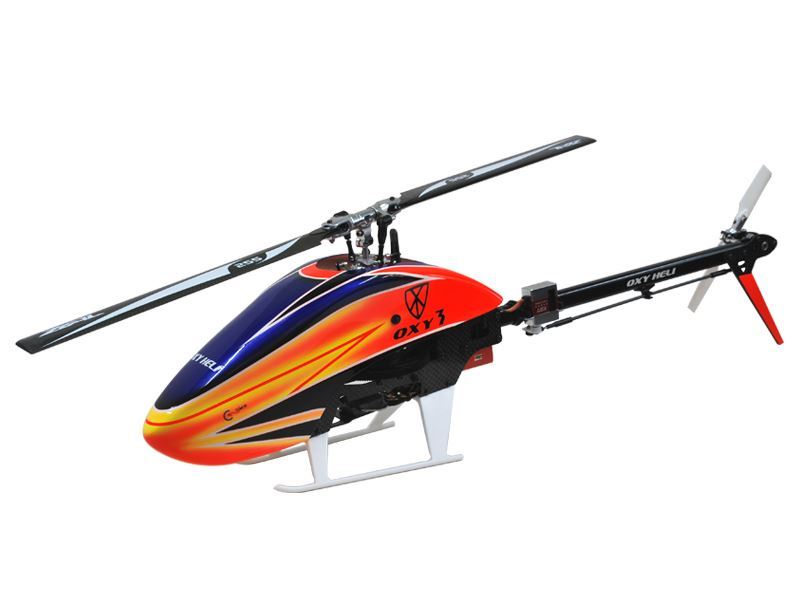

OXY 3 Helicopter Kit 255 mm Main Blade

Oxy Heli by Lynx
The Oxy Helicopter project is a natural evolution for Lynx Helicopters. Experience gained over many years of producing high quality upgrades has placed us in a unique position to enter the helicopter market. Our upgrades have been passionately developed by a core team of engineers and designers, delivering several breakthrough products which improved performance, reliability and maintenance costs of many helicopters. We see the market for small helicopters growing. Flybarless systems have allowed flight characteristics to mimic much larger models, and small brushless motors really pump out the power! It is relatively easy to produce a new helicopter. But much more challenging to design one which can be easily repaired and fly well again after a crash. Here at Oxy, were are not only engineers and designers – we are pilots, and have a clear vision what both 3D pilots and sport pilots require in a helicopter!

The Oxy Helicopter – the Lynx Division
Using the feedback gained from the upgrade market, our unique consolidated design and manufacturing practices, access to the best materials, a huge team of enthusiast supporters and test pilots from all over the world, as well as a powerful distributor network, Lynx Heli has decided to meet market demand for high performance helicopters by forming Oxy Helicopters. We will foster open collaboration with dealers and customers in the community to have the best designs possible.

Our Philosophy: Top Performance and Quality First!
There is a market emerging for high performance helicopters in the 180 to 350mm blade size. Customers don’t want a whole package – they want to pick preferred components like FBL system, blades, motors, servos, ESC, etc. Oxy Helicopters will have top-class, explosive performance, fitting for the best 3D pilots in the world. They will also appeal to sport pilots looking for a high quality, versatile product which is simple to build, maintain and set-up, with clean lines and is crash tolerant. The Oxy Helicopter project is the synthesis of years of ideas. We keep our helicopters simple, robust, light, and of a distinctive style

Our First Helicopter - The Oxy 3
Oxy 3 is the first helicopter in the Oxy Helicopter range. It is a 250 mm blade electric heli, with belt driven tail rotor, suitable for all micro servos. It is designed to handle high rpms (up to 4500), and in the future can grow with a stretch kit up to 280mm blades. Special upgrades will be available to run 3 or 4 blade heads, and a full fuselage to satisfy the requirements of all users

Main features

• Heli designed for intense 3D performance:

- Ultra rigid frame

- Triple main shaft supports

- Quality injection molded plastics

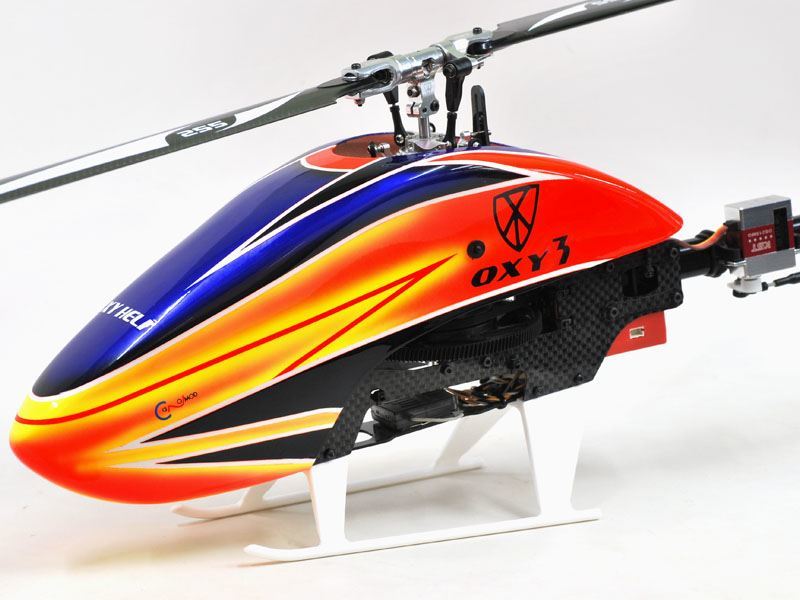

- Lightweight, high visibility and high-end airbrush canopy from Canomod

- Autorotation integrated into main gear hub

• Main rotor

- Semi rigid DFC head system (default Head) for precise performance and optional parts for easy FBL head system conversion.

- Thrust bearings in main and tail grips

- Oversize hardened spindle

- Ball raced 120° CCPM serviceable swash plate

- Swashplate linkages optimized geometry

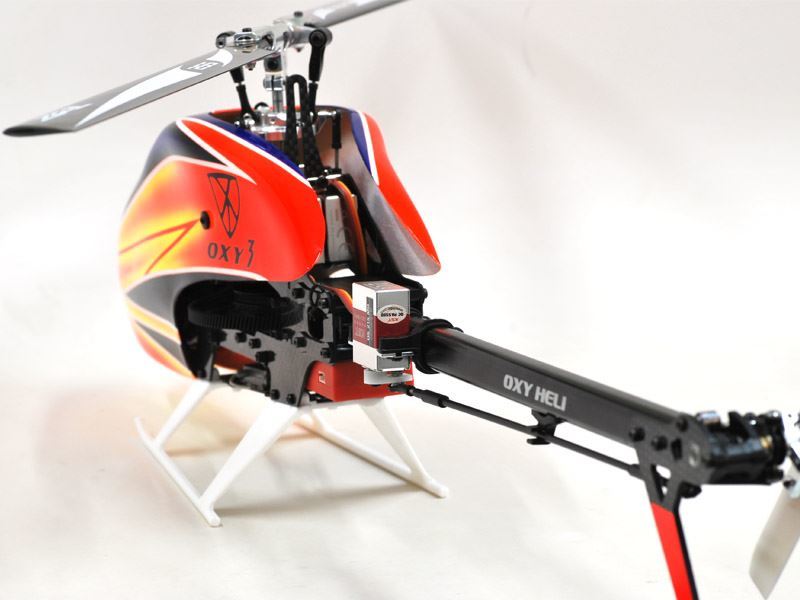

• Tail system

- Belt drive tail (low parts count and low crash cost)

- Innovative delta box tail boom with no requirement for boom supports

- Tail optimized to minimize vibration and servo load at high tail speed

- CNC tail pulley with pretension pulley system

- Rigid carbon fiber 3mm diameter tail push rod for the increased tail control

Electronics & Power system

- Battery tray fits a variety of battery packs 3s -4s (1300 to 1600 mAh) , 6s  (800 to 950 mAh) –  max length 75mm.

- ESC support suitable for 35 to 50A ESC – suggested: CC Talon 35 – HW 40 – HW 50

- Motor Options: Any motor for 300 to 450 class with 3.17 motor shaft and KV form 1900 to 4100 in function your battery set up (3 and 4S 3900 to 4100 KV – 6S 1900 to 2600 KV) – suggested EOX by Lynx 2214 to 2222 series – Scorpion 2213 to 2221 series – X Nova 2600 KV Tareq Edition.

- Hardened Steel Pinion included in the kit: 11T and 14T 3.17mm Shaft (optional pinions: 10-11-12-13-14-15)

- Suitable for most micro cyclic and tail servos – suggested combo:  4 x KST215MG – 3 x Servo King 995 + 1 x 995i – MKS 3 x D92A + 1 x 95i – BK Servo BK DS3001HV or any servo for 300 to 450 heli class.

- Smart and clean electronic wiring set up.

- Smart and protected FBL unit position – suggested FBL MSH Brain – IKON – Mikado mini VB / Neo - Spartan – Micro Beast – AR7200

Specifications

- Length: 530mm Height: 175mm Width: 80mm

- Main rotor blade length: 255mm

- Tail blade length: 47mm and 50mm in std kit for different tail authority need (suggested 47mm for Hard 3D Set-Up) – Black Color

- Slant main gear: 140T 0.5 Mod

- Wide head speed range: 3000 for sport flying a to 5000 for insane 3D

- Tail gear ratio 3.933 (15T pulley) , optional Tail Shaft Pulley 14T for low Head Speed set up

- Approximate RTF weight: 580g with 3s 1300mAh battery– suitable for 3.5 minutes of intense 3D at 4000rpm

OXY3 – 255 KIT CONTENTS:

1 x Oxy 3 Kit with DFC Head System and Optional FBL System.

1 x Oxy 3 Canomod Canopy – Orange Yellow Schema

1 x set ZEAL CF Main Blade 255mm – Carbon / White color

1 x Oxy Heli by Lynx Service Towel Black

1 x Swash Plate Lever Tools with Zero Pitch function

1 x set Plastic Tail Blade 47mm, Black

1 x set Plastic Tail Blade 50mm, Black

1 x set Colored Tail Fin Sticker (Yellow – White – Orange)

1 x CD Rom User Manual

1 x Serial Number Card

DOWNLOAD USER MANUAL HERE
