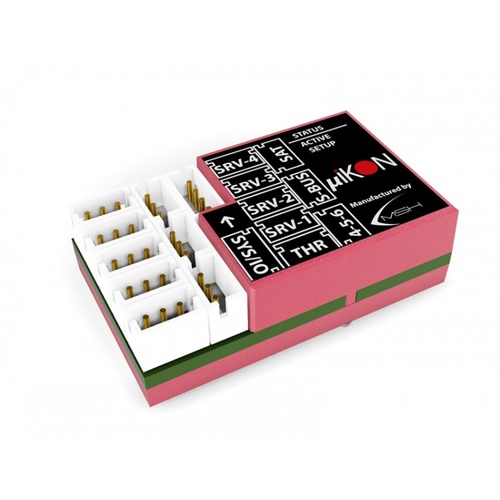

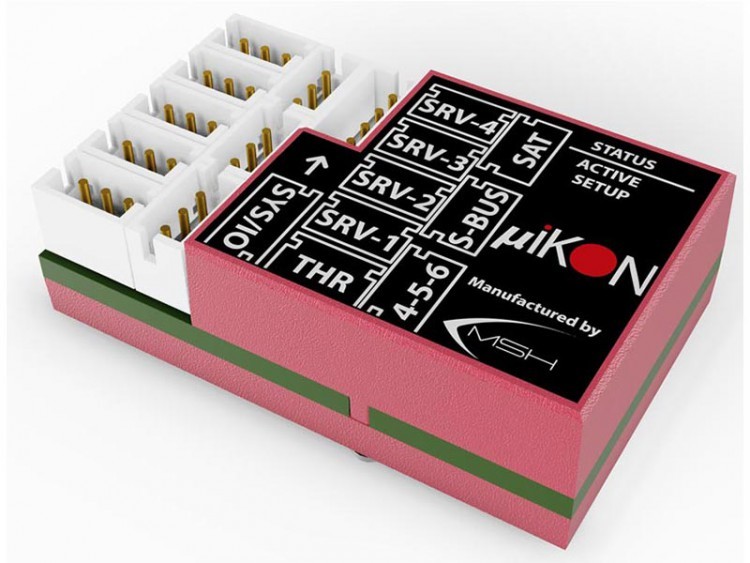

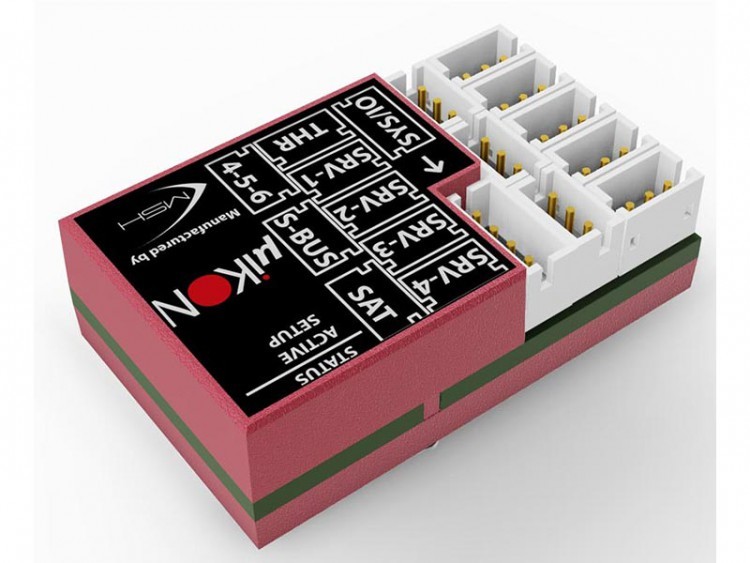

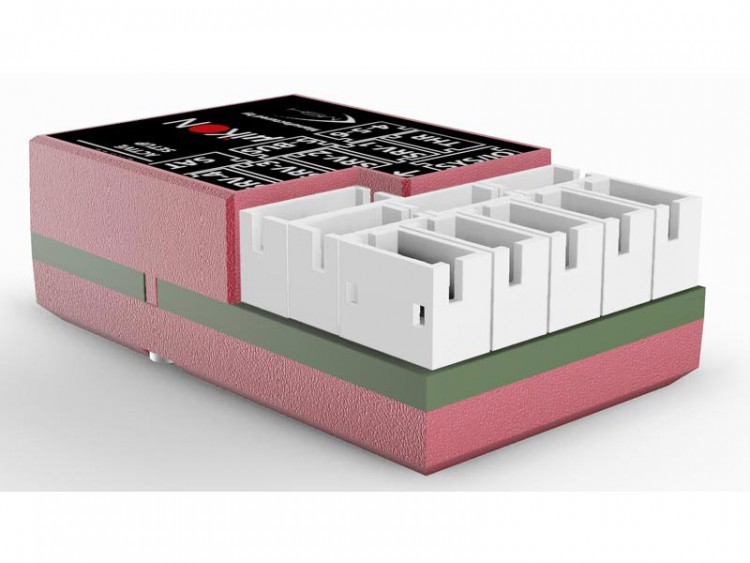

Micro iKON Flybarless System

450 Size and Smaller (Trex 250/450/Oxy3/Blade 180CFX)-No USB Cable

Update: iKON has released a new firmware update on Feb 2015. Please download the latest firmware below:

Download the latest iKon Configuration Software V1.0.010 Here

iKon Configuration Android App

Download the iKon Manual Here

Notes for Windows 8 Users:

The digital signing requirement on windows 8 may need to be turned off to get the IKON drivers to work with Windows 8.

Click here to download driver for the Windows 8/8.1
Download it, unzip it, then go to device manager, select update driver, then point it to the directory where you unzipped the signed driver, click ok and it should ask you if you want to install the signed driver.

iKon - Are You Ready?
Brought forth by MSH - the makers of the 'Brain' - the iKon represents a new leap in flybarless control. Bert Kammerer, in cooperation with MSH, worked tirelessly to fine tune the iKon flybarless controller to perfection. Every aspect of firmware has been fine-tuned and optimized, and in the end, we can say this system simply has no equal on the market today. The iKon is ready to change everything. Get ready for the iKon - it's ready for you.

Vibration Resistant - Bad Vibes Goodbye.
Simply put, gyros hate vibration, and when a flybarless system is sensitive to vibration, this has a direct impact on flight performance. The iKon flybarless unit utilizes new vibration dampening technology to isolate vibrations and put them in their place. This results in rock solid flight with nothing but true, direct flight performance that you can see and feel.

Simplified Setup - The Wizard is Here.
Nothing is more irritating, frustrating and time consuming than fumbling with manuals, setup videos and tech help when it comes to proper flybarless setup. No more - the wizard takes control. Utilizing an easy to follow and fuss free setup, the iKon takes a simplified approach to flybarless setup, allowing you to spend less time tuning and more time flying - just the way it should be.

Auto Level Technology - This is It.
That sickening crash can now be put behind you with auto level technology. For anyone still learning the basics, or those pushing new 3D limits, the auto level technology built within the iKon will revolutionize the way you fly, allowing you to push the limits with less risk of crashing. This technology is one of the multiple reasons that make the iKon so special, allowing a recovery from any orientation, no matter if the aircraft is right side up or upside down. Unlike other "bail out" technologies, the iKon "knows" how the aircraft is orientated, allowing a right side up recover every single time. Further, with auto level technology, the aircraft will remain level, allowing those first few training flights to be truly memorable - in a good way.

Satellite & S-Bus Ready - It's Your Choice.
Allowing the convenience of satellite technology, the iKon supports Spektrum DSM2 & DSMX satellite receivers, along with S-Bus technology via Futaba. On the Spektrum side, (2) satellite ports are offered for maximum redundancy & path diversity, suited for helicopters 500 sized and greater.

Built in Governor - Set Your Speed & Flight Mode.
Utilizing a transmitter selectable governor, the iKon brings compact flybarless technology to every level of the helicopter, allowing you to dial in that perfect rotor speed that suits your style, all at the flip of a switch. Incorporating a selectable (3) switch flight mode program, the iKon allows you to dial in your helicopter with fully adjustable flight mode parameters to obtain the very best from every flight. No more ancillary devices needed on your machine - the iKon handles it all.

Specifications:

 Dimensions: 31.6mm x 19.2mm x 10.7mm (LxWxH) / 13g Weight

 Application: Nitro and Electric Compatible

 Receiver Support: S-Bus 2 and PPM / Futaba S-Bus / Spektrum DSM2 & DSMX Ports/ Hitec

 Cyclic Servo Support: Up to 560Hz

Tail Servo Support: 760uS/ 1520uS with up to 560Hz Frequency

Features:

Micro iKon Flybarless System:

• CAN USE WITH T-REX 250/450, OXY3 AND OTHER SAME SIZE HELICOPTERS
• DIRECT DROP IN REPLACEMENT FOR BLADE CFX180 FBL SYSTEM

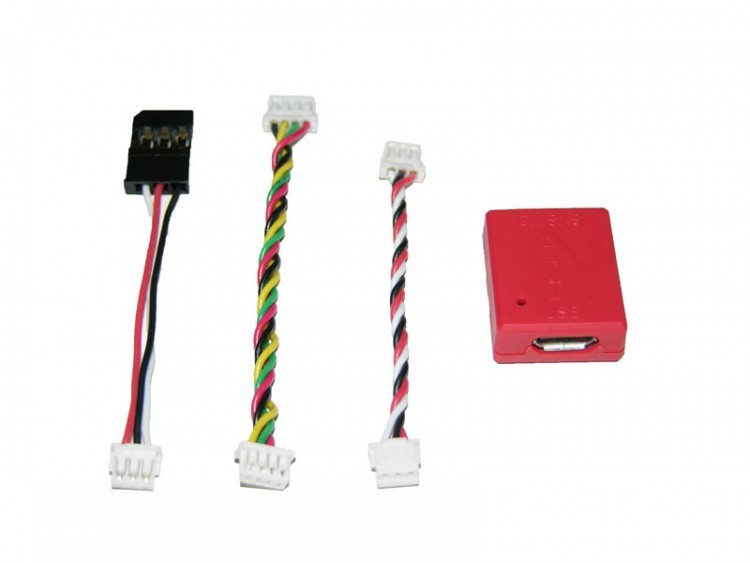

•  RX support Spektrum DSMX DSM2, Futaba S-BUS S-BUS2 PPM SUM, Graupner Hott Sumd, Multiplex SRXL, JR XBUS B, UDI (all connection cables included)
• Self leveling/Rescue
• Optional Bluetooth module with Android App
• 3 flight banks. Great for trying new settings, optimizing for diff headspeeds, etc.
• Pitch Pump. Really helps with micro collective authority making tic tocs much easier, and pop and lock a lot more fun
• Ability to save and share config files with other pilots
• Built in flight counter
• Full PC interface for configuration.
• Support for custom cyclic servos like the blue arrow that require reversing
• Support for higher end tail servos
• Superior vibration immunity based on hardware filter technology. Very high tolerance to models that are not so perfect
• Incredible piro consistency through high speed maneuvers. Piro comp
• Fully tunable tail including tail precomp, stops etc. the improvement on the tail is profound
• Easy servo position trimming for the cyclic and tail.
• Much greater ability to tune and optimize for different blade choices
• Big firmware improvements over time. A lot of Ikon features coming that work with the uiKon and full size.
