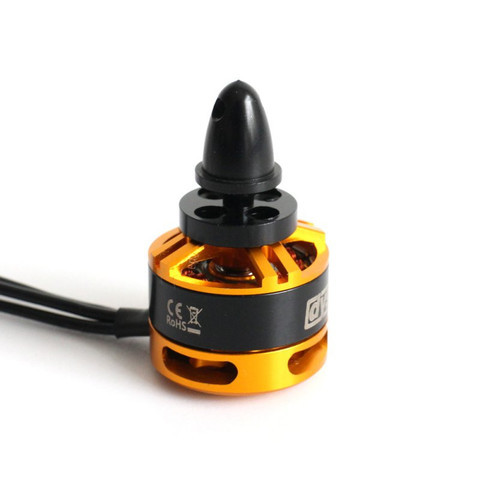

DYS BE 1806-13 Brushless Motor for Multirotor (2300kv) 24g



The DYS BE1806-13 multirotor motor is ideal for small to medium sized multirotors and comes complete with mounting bolts, a choice of prop adapters and 185mm power leads with 2mm bullet connectors.

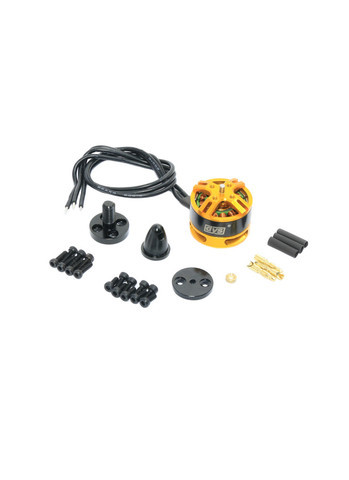

Includes:

1 x DYS BE1806-13 2300KV Brush-less Motor

8 x M2 7mm Bolt (for mounting motor to frame)

8 x M2 5mm Bolt (for prop adapter)

3 x 2mm gold connector (requires soldering to motor leads)

3 x 2mm heat shrink (for insulation of connectors)

1 x gold 4mm prop spacer (for direct mounting props)

1 x direct mount adapter

1 x 5mm prop adapter and base



Specs:

Rpm/V: 2300kv

Dimensions: 23 × 21mm

Lead length: 185mm (can be cut to size)

Shaft: 2mm

Prop Adaptor: 5mm

Voltage: 2S~3S (7.4v to 11.1v)

Weight: 24g

Watts: 89W

Max Current: 8A

ESC: 10amp to 12amp

Suggested Prop: 5x3(3S 11.1v) ~ 6x2 (2S 7.4v)

Motor Mount Holes: M2 x 12mm /16mm
