Important Note: This product is for experienced R/C users. Not recommended if you just started with R/C.

We can ship it in 1-2 weeks once the order is completed

Specifications:

• CNC Machined Metal parts

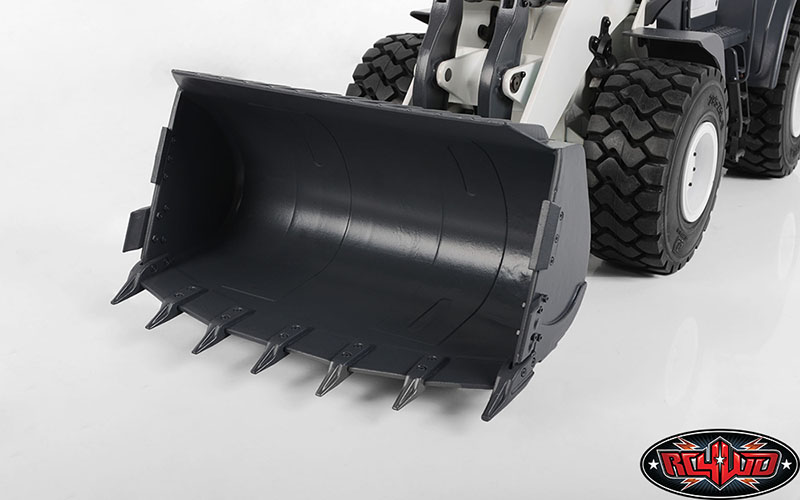

• Molded Steel bucket
• 6 channel 2.4Ghz radio
• Optimized Steel Hydraulic system

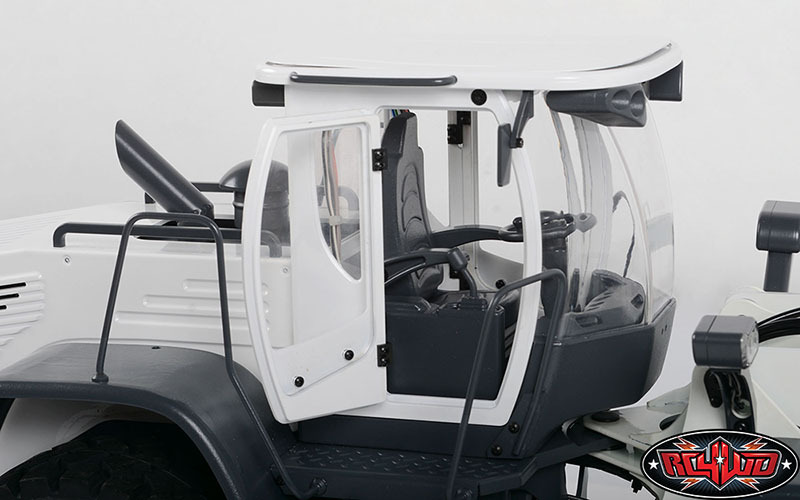

• Scale operator station (can fit a driving figure)

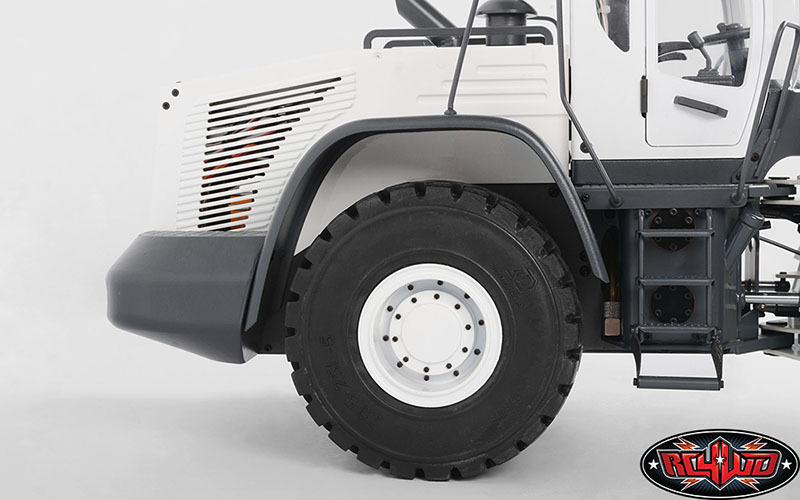

• Massive 29.5-25L-5 Tires
• Reliable hydraulic valve and adjustable pump
• Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
• Powder coated in yellow

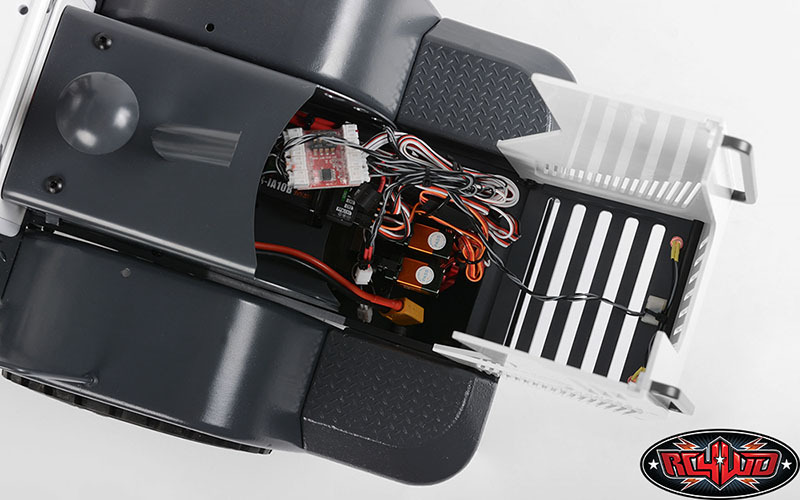

• Brushless system (hydraulic)
• 40A brushless ESC with BEC
• Kv brushless monster torque Motor
• Realistic non functional disk break
• Scale ABC plastic interior
• Wheel with planetary gearbox build-in
• 2 speed full metal transmission (1:16 and 1:4 gear ratio)

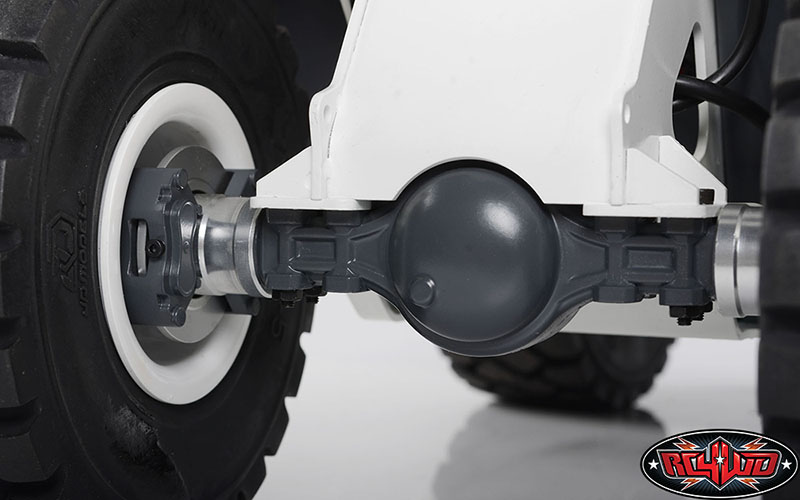

• Realistic full metal Axles
• Run time is: XX minutes (XXXXmAh Battery)
• Steel Machined oil pump (45mm X 30mm X 15.5mm)
• Bucket capacity:
• Maximum bucket force: 70kg / 154pounds
• Driving Speed: XXX meter per hour
• Scale: 1 : 14
• Length: 741mm / 29inch
• Width: 276mm / 11inch
• Height: 276mm / 11inch
• Maximum bucket Height: 461mm / 18inch
• Maximum bucket up and down angle: 46 to 64 degrees
• Maximum bucket left and right angle: 38 degrees
• Wheel base: 284mm
• Dead Weight: 20.5kg / 45lbs
• Total mass load: 32kg / 70lbs
• Operating oil pressure: 20Bar, 290psi
• Manufactured by JDCustoms
• 30 Days Limited Warranty

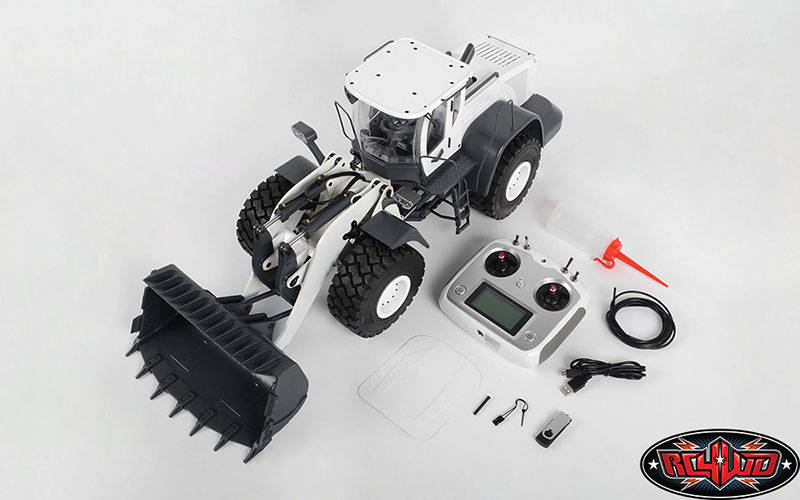

What's Included:

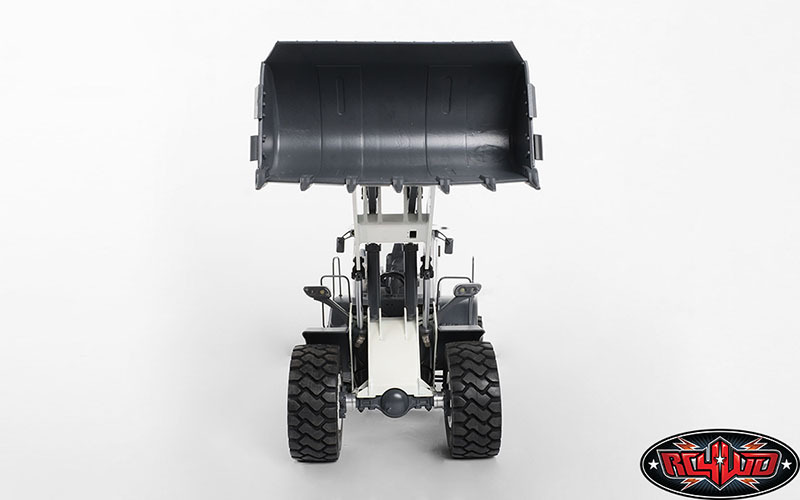

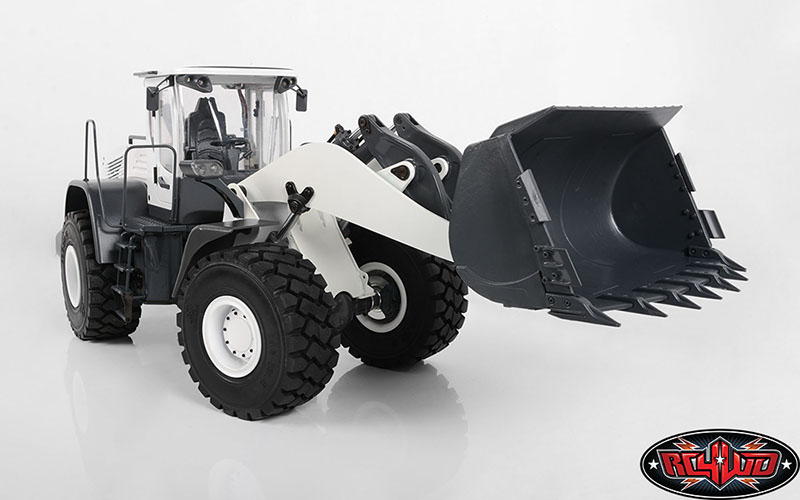

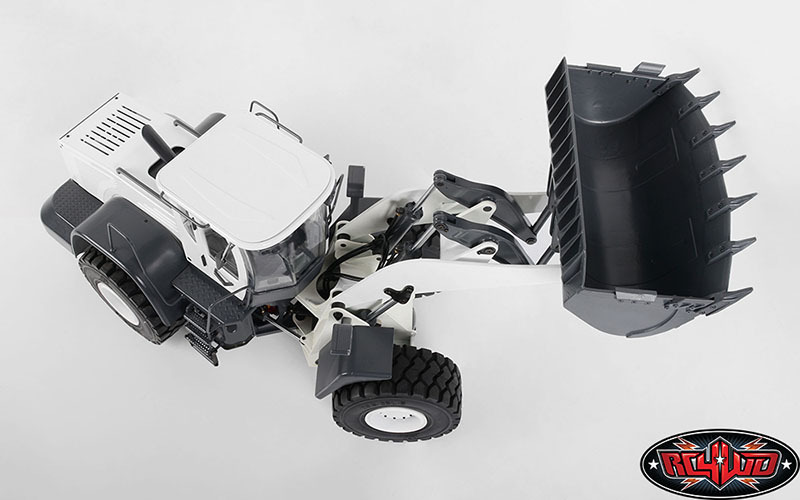

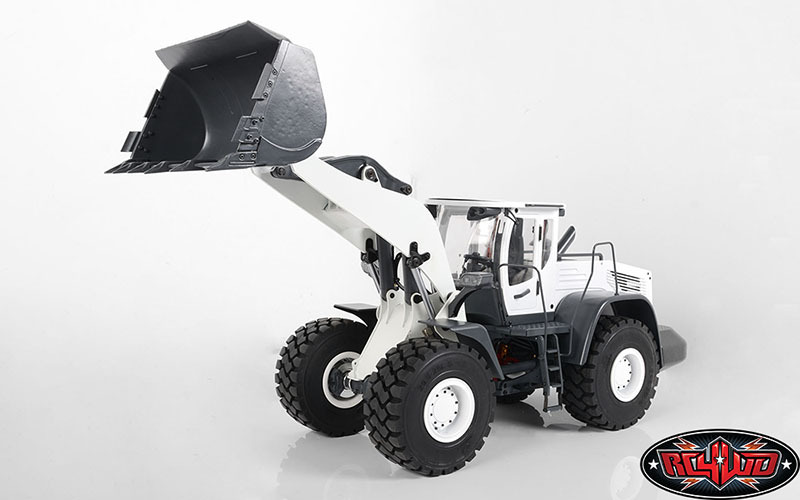

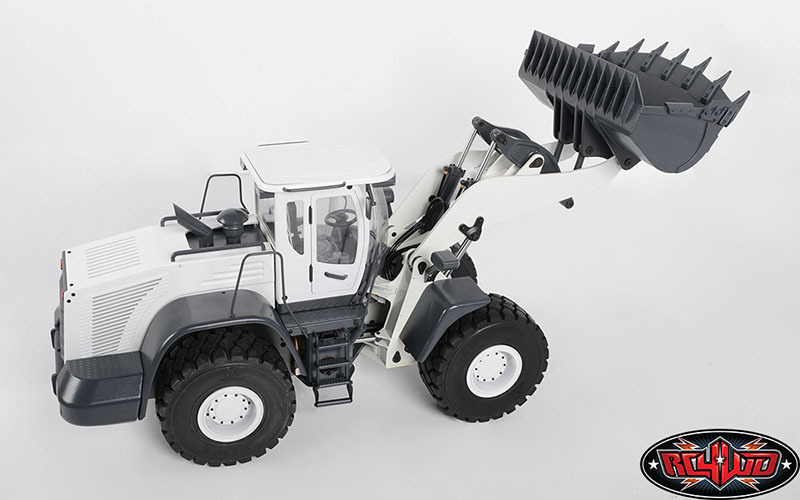

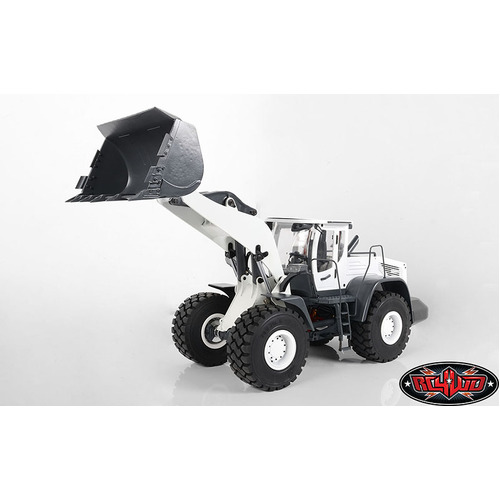

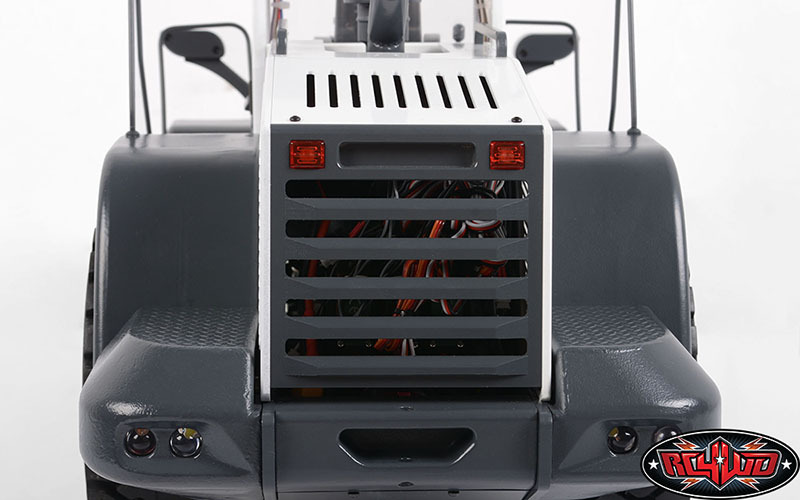

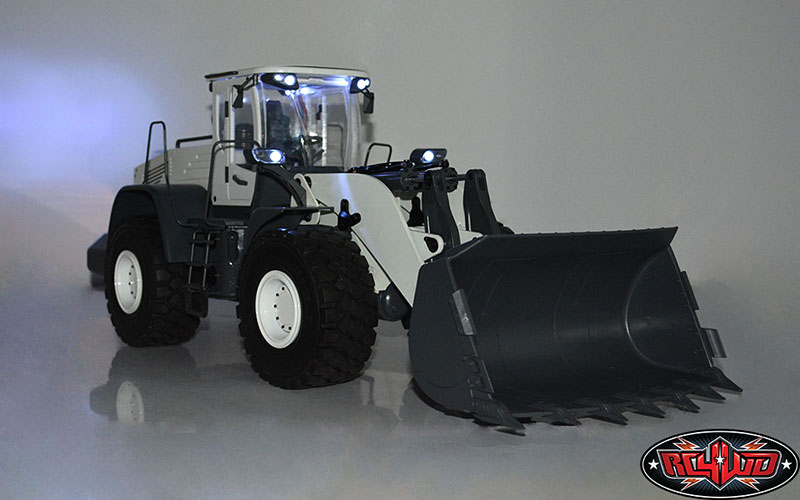

• 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (White)

Required Parts:

• 5000mAh 11.1V 50C 3S1P Short-Size Lipo Battery Pack with XT60 Plug
• Compatible Battery Charger
• 4x AA Batteries for Radio
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Optional Parts:

• Semi Truck Sound Unit (VVV-S0074)

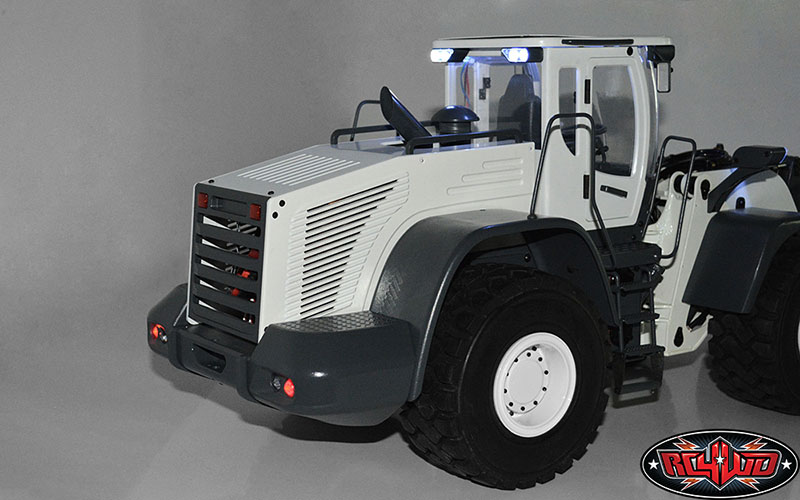

• Earth Mover 870K Warning Light System (VVV-S0189)
• Scale Heavy Duty Flat Bed Transporter
• High Intensity LED
• 1/14 Loader LED Lighting System (VVV-S0161)
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Sounds System:

Sounds system is no longer included.

Instruction Manual:

For Detailed Setup. Click Here

Instruction Manual:

• For Detailed Setup. Click here

Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• ESC Supports bullet Connector
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Warranty Information

This product is made for heavy duty usage. Since there is no plastic parts, its designed to last. But hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We will have all spare parts available for sell. Pump, hoses are electronics system is not covered under warranty, but we do guarantee fully functional at arrival. Each unit is full tested twice before we ship.

Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.

This Wheel Loader is shipped without oil. You will have to fill the tank your self (half tank), by using a funnel or tube (not included).
